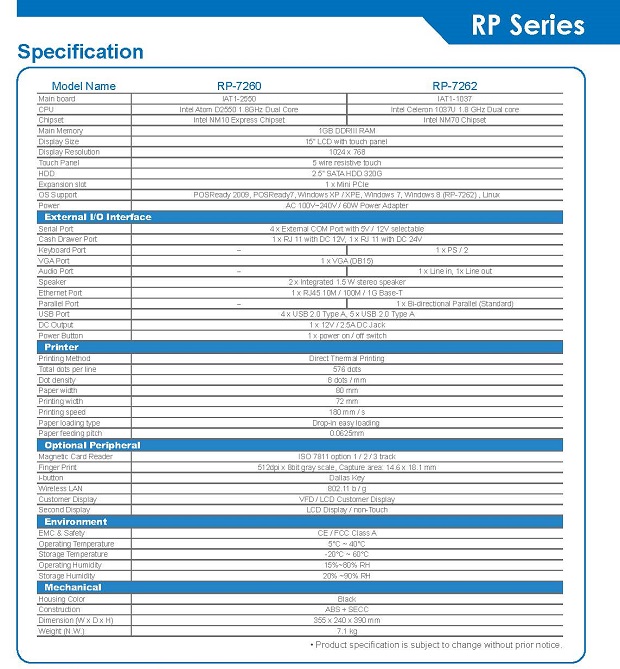

Model Name |
Rapid 7 |
|
System |
|
Main board |
IAT1-2550 |
|
CPU |
Intel Atom D2550 1.8GHz Dual Core |
|
Chipset |
Intel NM10 Express Chipset |
|
Main Memory |
1GB DDRIII RAM |
|
Display Size |
15” TFT-LCD with touch panel |
|
Display Resolution |
1024 x 768 |
|
HDD |
2.5” SATA HDD 320G |
|
Expansion slot |
1 x Mini PCIe |
|
OS Support |
POSReady 2009, POSReady7, Windows XP / XPE, Windows 7, Linux |
|
Power |
AC 100V~240V / 60W power adapter |
|
External I/O Interface |
|
Serial Port |
4 x External COM Port with 5V / 12V selectable |
|
Cash Drawer Port |
1 x RJ 11 with DC 12V, 1 x RJ 11 with DC 24V |
|
VGA Port |
1 x VGA (DB15) |
|
Speaker |
2 x Integrated 1.5 W stereo speaker |
|
Ethernet Port |
1 x RJ45 10M / 100M / 1G Base-T |
|
USB Port |
4 x USB 2.0 Type A |
|
DC Output |
1 x 12V / 2.5A DC Jack |
|
Power Button |
1 x power on / off switch |
|
Printer |
|
Printing Method |
Direct Thermal Printing |
|
Total dots per line |
576 dots |
|
Dot density |
8 dots / mm |
|
Paper width |
80 mm |
|
Printing width |
72 mm |
|
Printing speed |
180 mm / s |
|
Paper loading type |
Easy Loading |
|
Paper feeding pitch |
0.0625mm |
|
Optional Peripheral |
|
Magnetic Card Reader |
ISO 7811 option 1 / 2 / 3 track |
|
Finger Print |
512dpi x 8bit gray scale, Capture area: 14.6 x 18.1 mm |
|
i-button |
Dallas Key |
|
Wireless LAN |
802.11 b / g |
|
Customer Display |
VFD / LCD Customer Display |
|
Environment |
|
EMC & Safety |
CE / FCC Class A |
|
Operating Temperature |
5°C ~ 40°C |
|
Storage Temperature |
-20°C ~ 60°C |
|
Operating Humidity |
15%~80% RH |
|
Storage Humidity |
20% ~90% RH |
|
Mechanical |
|
Housing Color |
Black |
|
Construction |
ABS + SECC |
|
Dimension (W x D x H) |
355 x 240 x 390 mm |
|
Weight (N.W.) |
7kg |
