 Current Location:Home - Products - Thermal & Mobile Printer

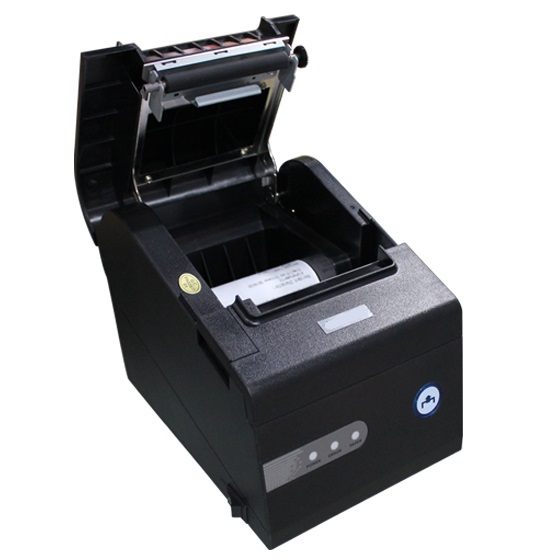

3 inch Thermal Printer
Product Name:3 inch Thermal Printer

Product No:115330-960
Model:UTP-230
Was Price:0Dollar/Carton Now Price:0Dollar/Carton
Last update:2013.06.25
Manufacturer:UTG Taiwan
Clicks:
   产品详细介绍
UTP-230
  80mm thermal receipt printer
  Printing details
  Printing method Direct thermal
  Paper width 79.5±0.5mm
  Resolution 576dots/line or 512dots/line
  Printing speed 230mm/sec
  Interface Serial/parallel/USB/Serial+USB/LAN
  Printing paper 79.5±0.5mm×φ80mm
  LineSpacing 3.75mm(Use command modifies line spacing)


Column number

80mm paper: FontA-42columns or 48columns/FontB-56 columns or 64columns/Simplified Chinese, traditional Chinese-21columns or 24columns


Character size

ANK,FontA:12×24dots,FontB:9×17dots Simplified Chinese,traditional Chinese:24×24dots
  Barcode Character
  Extension character sheets PC347(Standard Europe)、Katakana、
PC850(Multilingual)、PC860(Portuguese)、
PC863(Canadian-French)、PC865(Nordic)、
West Europe、Greek、Hebrew、East Europe、Iran、
WPC1252、PC866(Cyrillic#2)、PC852(Latin2)、
PC858、IranII、Latvian、Arabic、PT151(1251)
  Barcode types UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/
CODE39/ITF/CODABAR/CODE93/CODE128
  Buffer
  Input buffer 64k bytes
  NV Flash 256k bytes
  Power supply
  Power supply Input: AC 110V/220V,50~60Hz
  Power adapter Output: DC 24V/2.5A
  Cash drawer control DC 24V/1A
  Physical characteristics
   Weight 1.52kg
  Dimension 200×140×140mm
  Environmental Requirements
  Working environment temperature (0~45°c) humidity(10~80%)
  Storage environment temperature (-10~60°c) humidity(10~90%)
  Lifetime
  Reliability 100km
