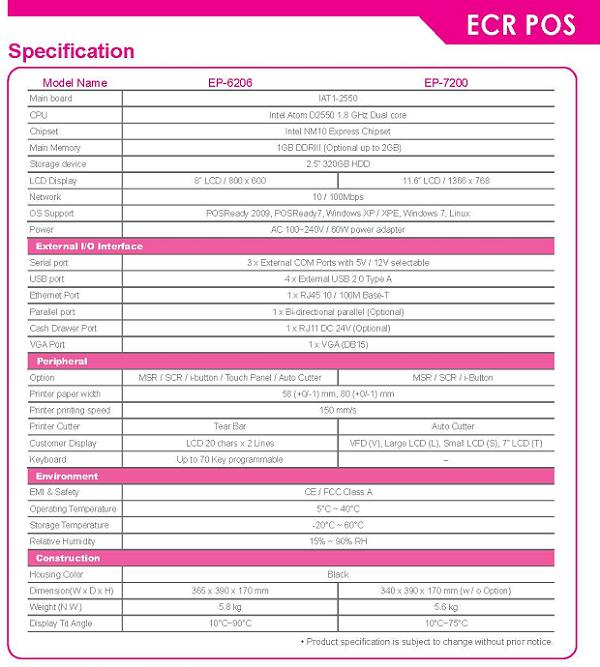

Model Name |
|
|
System |
|
CPU |
Intel Atom Dual core Processor D525 1.8 GHz |
|
Memory |
1G DDRIII RAM, up to 4GB |
|
Network |
10/100Mbps onboard Ethernet Controller |
|
Storage Device |
2.5" 160G HDD |
|
OS Compatibility |
Windows XP/XPE, POS Ready, Linux |
|
LCD Display |
8" LCD / 800x600 |
|
I/O Connectivity |
|
Serial Port |
3 x External COM Ports with 5V/12V selectable |
|
USB Port |
4 x External USB 2.0 Type A |
|
LAN Port |
1 x RJ45 10/100M Base-T |
|
Parallel Port |
1 x Bi-directional Parallel |
|
Cash Drawer Port |
1 x RJ11 DC 24V |
|
Keyboard Port |
1 x PS/2 (Keyboard & Mouse) |
|
VGA Port |
1 x VGA (DB15) |
|
Audio Port |
1 x Line-out |
|
Printer Paper width |
57±0.5 mm, 79±0.5 mm |
|
Printer Printing speed |
150 mm/s |
|
Printer Cutter |
Tear Bar |
|
Customer Display |
LCD 20 chars x 2 Lines |
|
Keyboard |
Up to 70 Key programmable |
|
Power Supply |
AC 100~240V / 90W power adapter |
|
Mechanical |
|
Housing Color |
Black |
|
Dimension(W x D x H) |
365 x 390 x 170 mm |
|
Weight |
N.W. 5.8 kgs |
|
Display Tilt Angle |
10~90 degree |
|
EMI/Safety |
CE, FCC Class A |
|
Environment |
|
Operating Temperature |
5°C ~ 40°C |
|
Storage Temperature |
-20°C ~ 60°C |
|
Relative Humidity |
15% ~ 90% RH |
|
Peripherals |
|
Option |
MSR / SCR / i-button /Touch Panel / Auto Cutter |
