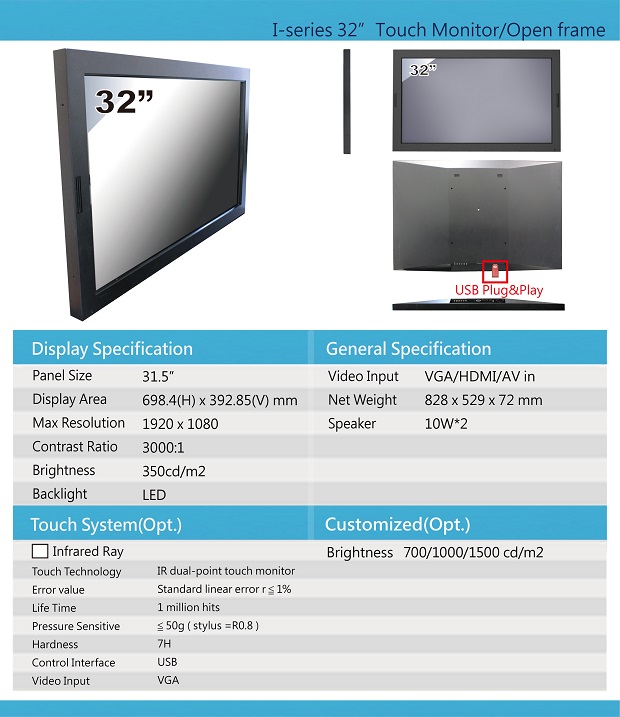

32 inch Open Frame Display / Optional Touch
|
| Product Name：32 inch Open Frame Display / Optional Touch |
 |
| Product No：13542-743 |
| Model：OF320 |
| Was Price：0Dollar/Carton Now Price：0Dollar/Carton |
| Last update：2015.04.22 |
| Manufacturer：UTG Taiwan Global Website |
| Clicks： |
|
 产品详细介绍 |
| Display Characteristics |
| Model No. |
P320T |
Resolution |
Bitmap
|
| Active Screen Size |
31.5 inch |
Brightness |
350 cd/m |
| Active Area |
698.4x392.9 mm |
Contrast Ratio |
3000:1 |
| Display Ratio |
16:9 |
Viewing Angle (L/R/U/D) |
89°/89°/89°/89° |
| Backlight Unit |
LED |
Response Time |
6.5 msec |
| Pixel Pitch |
0.3637x0.3637 mm |
Surface Treatment |
Anti-Glare, Haze=2% |
| Operating Temp. |
0-50 ℃ |
|
|
| General Specification |
| Speaker |
5Wx2 |
Display interface |
VGA & DVI & HDMI x2 |
| Wall mount |
30x30 CM |
Other connectors |
Audio-in, DC-in, USB input |
| Housing Materical |
Galvanized Steel (SECC) |
|
|
| Touch Specification (option) |
| Type |
I.R |
Model No. |
NTI315I |
| Allowed touch points |
8 point |
Touch Accuracy |
<2mm, no drift |
| Tempered Glass Treatment |
Hardness 7H, AG |
Sensed Size |
≧5 mm |
| Report Resolution |
32768x32768 |
Interface |
USB |
| Dimension |
814.8x473x73.2 mm |
Net Weight |
25 KG |
| Bitmap
|
| Brightness |
700/1500 cd/m |
Water Proof |
Surface Splash Proof |
| Surface Protection |
Tempered glass |
Color |
Any Color (MOQ requested) |
| Coating Film |
AG/AR/AF |
| |
| |
|
|
