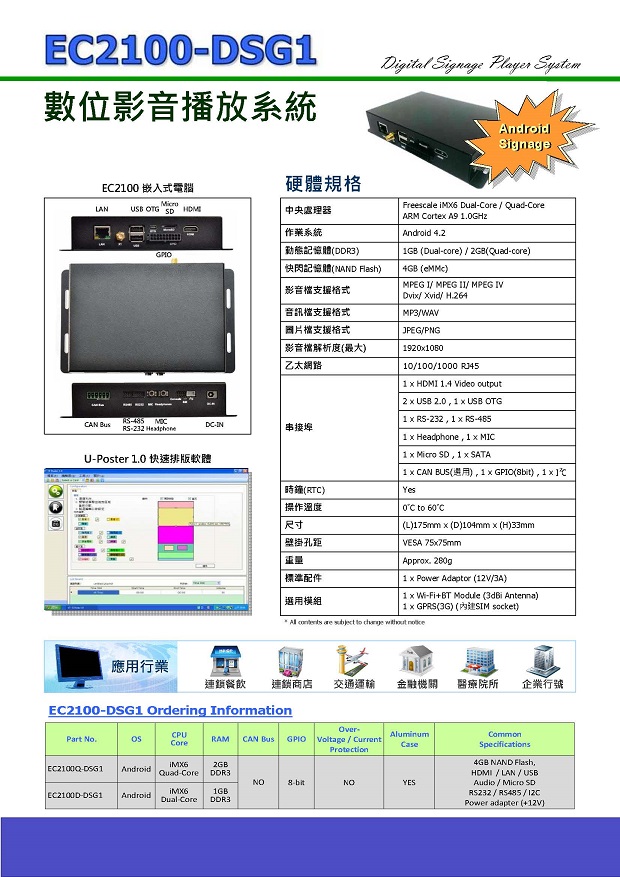

EC Android PC
|
| Product Name：EC Android PC |
 |
| Product No：111749-935 |
| Model：EC_Android |
| Was Price：0Dollar/Carton Now Price：0Dollar/Carton |
| Last update：2015.05.20 |
| Manufacturer：UTG Taiwan Global Website |
| Clicks： |
|
 产品详细介绍 |
| Processor |
Freescale iMX6 Dual-Core / Quad-Core ARM Cortex A9 1.0GHz |
| OS |
Android 4.2 |
| SDRAM (DDR3) |
1GB (Dual-core) / 2GB (Quad-core) |
| RAM (NAND Flash) |
4GB (eMMc) |
| Medai Format |
MPEG I / MPEG II / MPEG IV / Dvix / Xvid / H.264 |
| Sound Format |
MP3 / WAV |
| Support Format |
JPEG / PNG |
| Resolution (Max) |
1920 × 1080 |
| Ethernet |
10/100 /1 Gb Ethernet (RJ-45 connector) |
| I/O Interface |
1 × HDMI 1.4 Video output |
| 2 × USB 2.0, 1 × USB OTG |
| 1 × RS-232, 1 × RS-485 |
| 1 × Headphone, 1 × MIC |
| 1 × Micro SD, 1 × SATA |
| 1 × CAN BUS (選用), 1 × GPIO (8bit), 1 × I²C |
| Cloeck (RTC) |
Yes |
| Operating Temp. |
0°C to 60°C |
| Deminsion |
(L)175mm × (D)104mm × (H)33mm |
| Vesa Size |
VESA 75 × 75mm |
| Weight |
Approx. 280g |
| Standard |
1 × Power Adaptor (DC +12V @ 3A) | * All contents are subject to change without notice |
| |
| Optional |
1 × Wi-Fi + BT Module (3dBi Antenna) |
| 1 × GPRS (3G) - 內建SIM card socket | | |
| |
|
|
