General

CPU

Onboard Intel Core i7-8550U 1.8GHz Max 4.0GHz 4 Cores 8 Threads processor

Core (FSB)

100MHz

CPU Technique

14nm

L3 Cache

8MB SmartCache, CPU Integrated

BOIS

AMI BIOS, ACPI supported

Support Wake-On-LAN

Chipset

Intel Kaby Lake R

Memory

2* SO-DIMM DDR4 Slot

Support 4GB/8GB/16GB/32GB

Dual Channel, DDR4-2400, LPDDR3-2133

Storage

SSD: 8G/16G/32G/64G/128G/256G/512G/1TB

HDD: 160G/320G/500G/1TB

Operating System

Windows 10/Linux

Audio

ALC897 chip, 7.1 channel sound

Intel Lynx Point-LP HDA

Network

Onboard Realtek RTL8168E PCI-E Gigabit Ethernet NIC

Onboard RTL8111DL10/100Mbps/1000Mbps BaseT LAN

Video

Intel UHD Graphics 620(300MHz~1.15GHz)

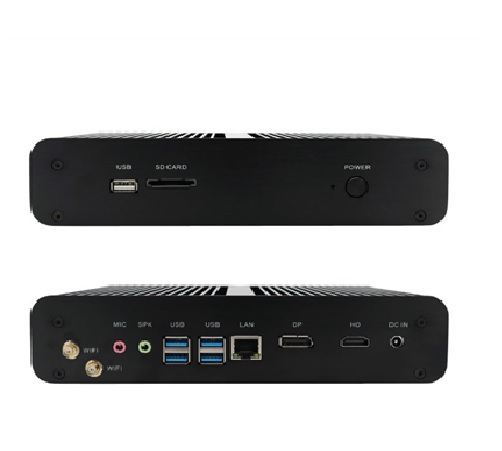

I/O port

front panel ports

1* Power indicator and switch, 1*USB2.0, 1*SD Card Reader

Backside ports

2*WiFi antennas , 1*MIC, 1*SPK, 4*USB3.0, 1*LAN, 1*DP, 1*HDMI, 1*DC IN

Internal ports

1*M-SATA3.0 port, support 6Gb/s

1*M.2 SSD port, support 6Gb/s

1*SATA3.0 port, support 6Gb/s

1*mini-PCIE port(WIFI&BT)

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC 12V~19V/5A

Operating Temperature

0/70 Centigrade(32F~140F)

Storage Temperature

-20/+85 Centigrade

Relative Humidity

0%~90% (non-condensing)

Energy-saving

Support Energy-saving technology, Speedstep

64 bit computing

Support 64 bit computing

Virtualization

Intel VT-x

Hyper-threading

Support Hyper-Threading

Product Dimension & Details

Size

210*175*45MM

Weight

3.0KG

Consumption

15W~25W

Shell

Black color aluminum alloy

Package Content

Mini PC device, power adapter, a stand holder, dual WiFi antennas(optional), a HDMI cable( as a gift), VESA mount&screws(optional), Warranty Card
