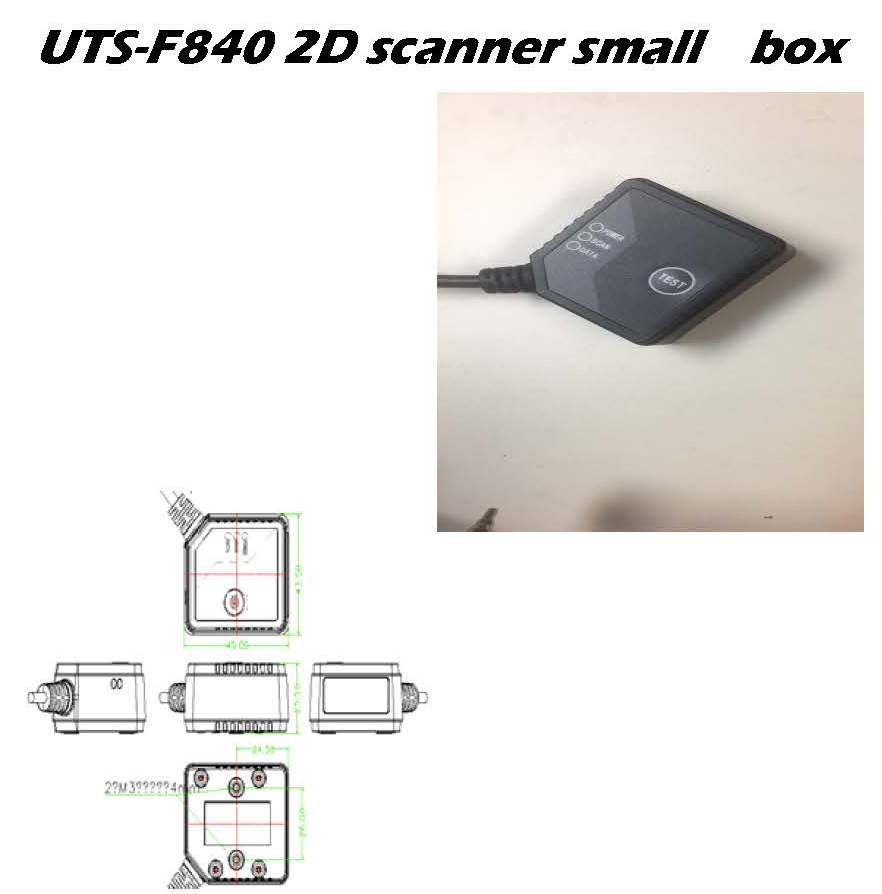

Integrated 2D Scanner
|
| Product Name：Integrated 2D Scanner |
 |
| Product No：15576-492 |
| Model：UTS-F840 |
| Was Price：0Dollar/Set Now Price：0Dollar/Set |
| Last update：2021.07.19 |
| Manufacturer：UTG Taiwan Global Website |
| Clicks： |
|
 产品详细介绍 |
|
Specfications |
|
Light Source |
Illumination 650nm LED |
|
Image Pixel |
640 (H) x 480 (V) Pixel |
|
Best Resolution |
0.127mm (5 mil) |
|
Print contrast Signal |
30% or more |
|
Field of View: |
42° (H) x 30° (V) |
|
Roll/Pitch/Yaw |
360° / ± 65° / ± 60° |
|
Motion Tolerance |
Same |
|
Indicator |
Beeper and LED |
|
Interface |
USB and RS232 |
|
Symbologies: 2D |
2D: QR, PDF417, Data Matrix, Aztec, Han Xin |
|
Symbologies: 1D |
Code 128, EAN, Code 39, UPC, Codabar,Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5 |
|
Electrical |
|
Input Voltage |
5V DC ±5% |
|
Power Consumption |
1W |
|
Current - Standby |
160mA |
|
Current - Operating |
20mA |
|
Environment |
|
Operating Temp. |
32℉ to 105℉ (0℃ to 50℃) |
|
Storage Temp |
-15℉ to +140℉ (-26℃ to 60℃) |
|
Humidity: |
10% to 90% RH |
|
Drop Spec. |
|
|
Ambient Light |
100,000 Lux max. (Fluorescence). |
|
Physical |
|
Case Material: |
ABS + PC |
|
Dimension: |
L:49mm W:43.5mm H:25.5mm |
|
Weight: |
50g |
|
Cable: |
1.8mstraight Cable |
|
|
|
