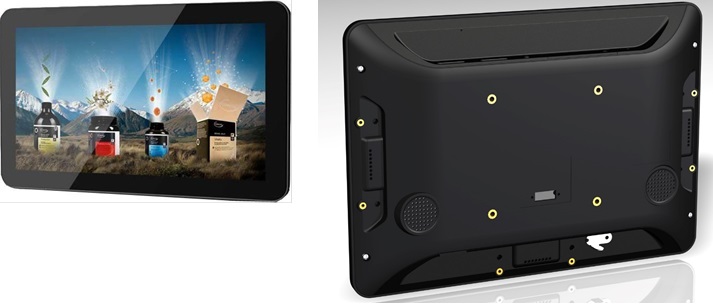

10" PCAP Multi Touch Display
Product Name:10" PCAP Multi Touch Display

Product No:155111-439
Model:10P-NT
Was Price:0Dollar/Set Now Price:0Dollar/Set
Last update:2021.08.02
Manufacturer:UTG Taiwan Global Website
Clicks:
   产品详细介绍

Basic Specification

Display

10.1§

1280x800

System

CPU

Novatek 68862

SPI Flash

2M bits.

I/O

HDMI

*1

USB Type A

*1,Touch Panel Input

Speaker

同10P用料

2Wx2

Power

AC/DC adapter(Option)

100-240Vac In, 12Vdc Out/2A,24W adapter

Physical Button

Power slide switch.

1

Function Key

Menu, Up/Down, Auto/Return, Input mode Select

LED Indicator

Green/Red 雙色燈

1

Reliability

Certification

CE/FCC

Environment

Temperature

Operation: 0℃ ~ 40℃ ( 32F ~104F)

Storage: -10°C ~ 55°C  (14°F ~ 131°F)

Humidity

Storage:10% ~ 70% (Non-Condensing)

RoHS

















Detail Specification

Hardware

CPU

- Novatek 68862

System Memory

- SPI Flash 2Mbit

LCD

- 10.1§ 1280x800 digital TFT LCD、(IPS)



Touch Panel Type

- 10 point capacitive multi-touch type



Amplifier, Speaker

- Speaker unit: 2W+2W

-- Save the set-up volume and keep the value at the time of power off and on.





LED

-  Power supply ON: Green LED Light.

-  Power supply OFF: LED light off



External Interface

- Key button (Menu, UP, Down, Auto/Return , Manual)

- USB interface: USB host type A port for Touch Panel Input.

- Power Button

- AC adapter port 3 Meter.

- VESA mount (75x75 mm)

- USB Cable 2.5 Meter
