Basic Specification
|
Display |
LCD Panel Size |
27§ |
|
LCD Panel Type |
IPS |
|
View Angle |
178/178 (H/V CR=10) |
|
Number of Pixel |
1920*1080 |
|
Back-light |
LED Side-light type |
|
Brightness |
300 cd/m2 |
|
Contrast Ratio(Typical) |
3000(Typ.) |
|
Support Color |
16.7M colors |
|
Response Time |
12ms |
|
Anti-Glare |
No |
|
Aspect Ratio |
16:9 |
|
System |
CPU |
Novatek NT68862UFG |
|
SPI Flash |
2M bits |
|
Video Input Signal. |
HDMI |
*1 |
|
Video Cables Supplied |
No |
|
USB |
USB A Type |
For USB Touch |
|
USB Cable Supplied |
No |
|
Audio |
Speaker |
3W 8 OHM *2 |
|
Power Supply |
External |
100-240Vac In,12Vdc Out/5A 60W Adaptor |
|
LED Indicator |
Green/Red LED |
*1 |
|
Physical Button |
Power Key |
*1 |
|
Function Key |
Menu, UP, Down, Auto, Auto |
|
Mechanical |
VESA |
100mmx100mm |
|

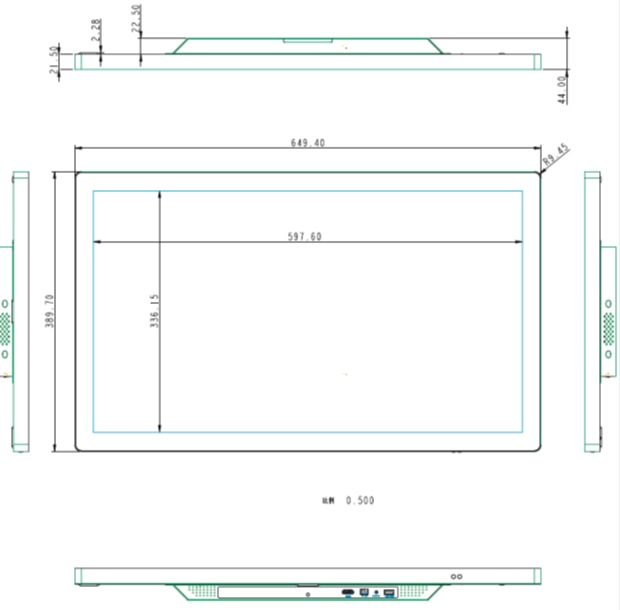

Dimension |
649.4mmx389.7mmx44.0mm |
|
Bezel |
Color |
Black |
|
Top/Bottom |
26.8mm +/- 1.5mm |
|
Left/Right |
25.9mm +/- 1.5mm |
|
Environment |
Temperature |
Operation: 0°C ~ 40°C
Storage: -10°C ~ 55°C |
|
Humidity |
Operation:10%~85%
Storage:10% ~ 85% (Non-Condensing) |
|
Compliance |
ROHS |
EU 2002/95/EC |
|
Warranty |
1 year |
From Factory Shipping |
Hardware
CPU
- Novatek NT68862UFG
System Memory
- SPI Flash 2M bits
LCD
- 27§ 1920x1080 digital TFT LCD、(IPS)
Touch Panel Type
- 5 point capacitive multi-touch type
Speaker
- Speaker unit: 3W+3W
-- Save the set-up volume and keep the value at the time of power off and on.
LED
- Power supply ON: Green LED on.
- Power supply OFF: LED light off
External Interface
- Key button (Menu, UP, Down, Auto ,Auto)
- USB interface: USB host type A port （USB 2.0 high speed 480Mbps）x 1
- HDMI
- Power Button
- AC adapter port
VESA mount (100x100 mm) |
