17 inch Open Frame Display Optional Touch
Product Name：17 inch Open Frame Display Optional Touch

Product No：165428-571
Model：OF170
Was Price：0Dollar/Carton Now Price：0Dollar/Carton
Last update：2013.06.21
Manufacturer：UTG Taiwan
Clicks：
   产品详细介绍

◆ High Contrast color TFT LCD Monitor support  resolution up to SVGA.
◆ Power management system conforms to VESA DPMS andEPA Energy Star standards.
◆ Full consideration for touch screen installation and application.
◆ Universal Power adapter.
◆ Support DDC1 & DDC2B for Plug & Play compatibility
◆ Advanced OSD control for picture quality adjustment.
◆ Custom design by request.



Specifications
Model Name

UTOF170

Panel Type AU 17" LCD Panel
Active Display Area (mm) 337.920 (H) x 270.336 (V)
Pixel Pitch (mm) 0.264 (H) x 0.264 (V)
Number of Pixels 1280 x 1024
Display color 16.2M colors
Contrast Ration 450 : 1
Backlight 4 CCFL Backlight units
Luminance 260 cd/m2
View Angle (CR>=10) -70 ~ +70 (H) ; -70 ~ +70 (V)
Response time (Tr+Tf) 16 ms
Synchronization Range
Horizontal / Vertical		 31.5 ~ 68 KHz / 56 ~ 75 Hz
Recommended Resolution 1280 x 1024 @ 60Hz, 75Hz
Signal Connector 15 pin D-Sub
Power Adapter Universal AC 100V ~ 240V, 50 ~ 60Hz input,
12V DC, 4.0A output, 48 Watt
Power Consumption 30 Watt Typical ; Normal operation
Plug & Play VESA DDC 1/2B
Dimension (mm) 　
Option Touch Resistive ; Capacitive
Video Input Option
Media Player Option

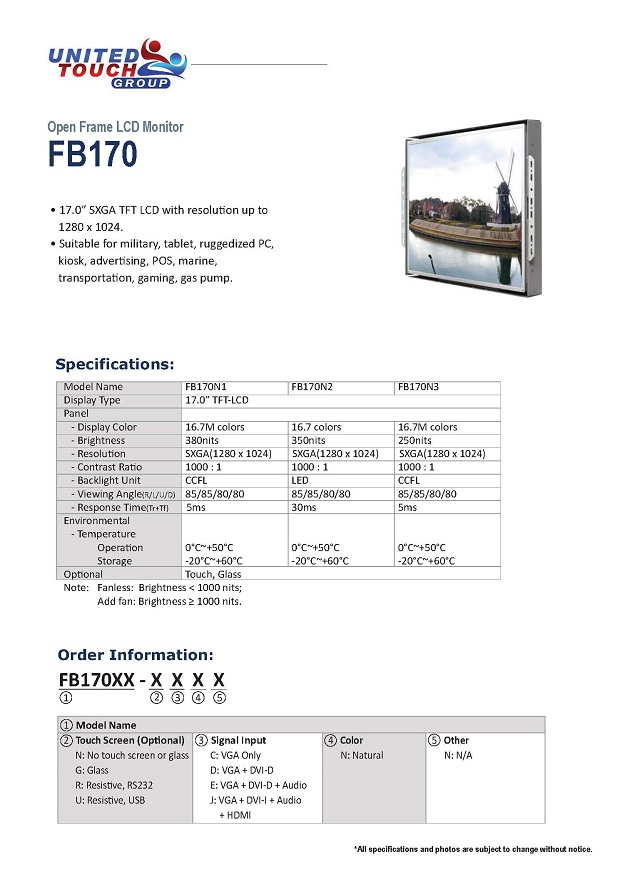

Download Drawing

Specification is subject to change without notice.
