Pioneer Touch
Product Name:Pioneer Touch

Product No:111536-479
Model:Pioneer
Was Price:0Dollar/Carton Now Price:0Dollar/Carton
Last update:2013.06.23
Manufacturer:UTG Taiwan
Clicks:
   产品详细介绍

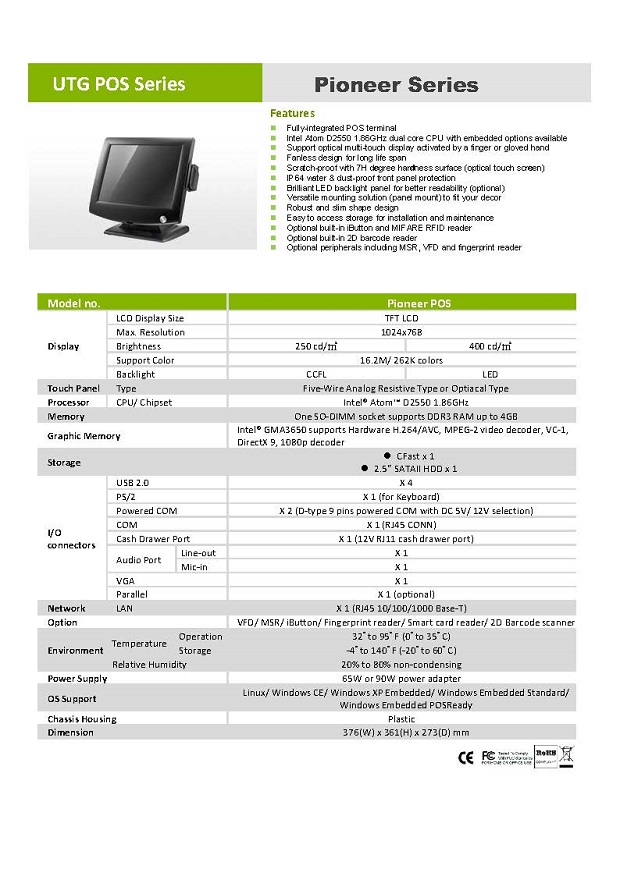

Model no.
All-in-One POS Terminal - Pioneer
Display
LCD Display Size
TFT LCD
Max. Resolution
1024x768
Brightness
250 cd/㎡
400 cd/㎡
Support Color
16.2M/ 262K colors
Backlight
CCFL
LED
Touch Panel
Type
Five-Wire Analog Resistive Type
Processor
CPU/ Chipset
Intel® Atom™ D2550 1.86GHz
Memory
One SO-DIMM socket supports DDR3 RAM up to 4GB
Graphic Memory
Intel® GMA3650 supports Hardware H.264/AVC, MPEG-2 video decoder, VC-1, DirectX 9, 1080p decoder
Storage
CFast x 1
2.5§ SATAII HDD x 1
I/O connectors
USB 2.0
X 4
PS/2
X 1 (for Keyboard)
Powered COM
X 2 (D-type 9 pins powered COM with DC 5V/ 12V selection)
COM
X 1 (RJ45 CONN)
Cash Drawer Port
X 1 (12V RJ11 cash drawer port)
Audio Port
Line-out
X 1
Mic-in
X 1
VGA
X 1
Parallel
X 1 (optional)
Network
LAN
X 1 (RJ45 10/100/1000 Base-T)
Option
VFD/ MSR/ iButton/ Fingerprint reader/ Smart card reader/ 2D Barcode scanner
Environment
Temperature
Operation
32° to 95° F (0° to 35° C)
Storage
-4° to 140° F (-20° to 60° C)
Relative Humidity
20% to 80% non-condensing
Power Supply
65W or 90W power adapter
OS Support
Linux/ Windows CE/ Windows XP Embedded/ Windows Embedded Standard/ Windows Embedded POSReady
Chassis Housing
Plastic
Dimension
376(W) x 361(H) x 273(D) mm
