 Current Location:Home - Products - Handheld /Fixed Scanners

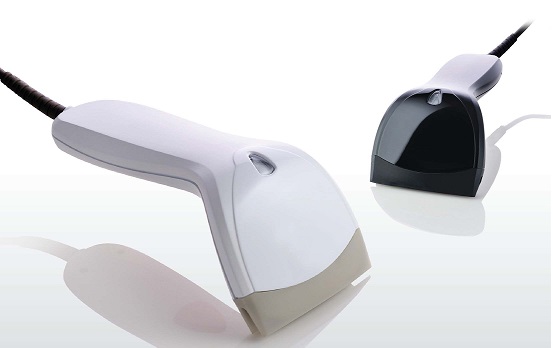

Scantech CCD
Product Name:Scantech CCD

Product No:13509-941
Model:SD700
Was Price:0Dollar/Carton Now Price:0Dollar/Carton
Last update:2013.06.24
Manufacturer:UTG Taiwan
Clicks:
   产品详细介绍
Specifications
Performance
Light Source 632nm Red LED
Processor type 32bits
Depth of Field Up to 500 mm@20mil/0.5mm, PCS90%, Code39
Scan Rate Smart detection, up to 500 scans per second
Resolution 4mil/0.1mm@PCS90%, Code39
Print contrast ratio 30%
Indicator Beep and LED (Good read Green)
Interface KBW/RS232/USB (HID or virtual comport)
Physical
Color available Black (Cap and Grip) / Gray(Cap), Beige(Grip)
Dimensions (WxHxL) 75 x 82.85 x 171.31 mm
Weight 152.6g
Electronic
Input Voltage DC +5V ± 5%
Operating current 150mA
Standby current 50mA
Environmental
Ambient light Up to 100,000 Lux
Operating temperature 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature -20°C to 70°C (-4°F to 158°F)
Relative Humidity 20% to 95% (Non-condensing)
Drop resistance 70.86 inches (180cm)
Sealing protection IP54 sealing protection
Symbologies Automatically discriminates major standard 1D bar codes, include GS1 databar
