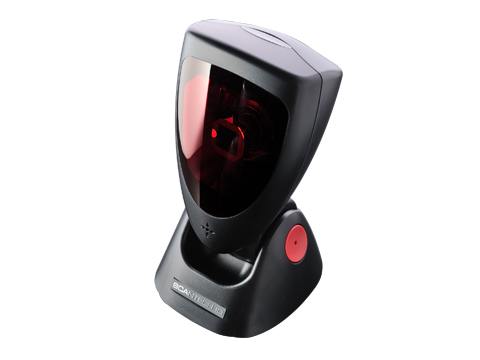

Scantech ID-Libra
|
| Product Name：Scantech ID-Libra |
 |
| Product No：15257-886 |
| Model：Libra |
| Was Price：0Dollar/Carton Now Price：0Dollar/Carton |
| Last update：2013.06.24 |
| Manufacturer：UTG Taiwan |
| Clicks： |
|
 产品详细介绍 |
| Specifications |
| Performance |
|
| Light Source |
650 nm VLD ± 10nm |
| Depth of Field |
Up to 230 mm@13mil/ 0.33mm, PCS 90% |
| Scan Pattern |
6 direction scan field, 24 lines scan pattern |
| Scan Rate |
2,000 scans per second |
| Resolution |
5mil / 0.127mm |
| Print contrast ratio |
30% |
| Indicator |
Beeper and LED (Standy Blue, Good read Orange) |
| Interface |
RS232, USB (USB HID, Virtual COM port), Keyboard Wedge, Powered USB (Powered USB is option in MICA & LIBRA) |
| Physical |
|
| Color Available |
Black(Scanner+Base) or Beige(scanner) + Dark Gray(base) |
| Dimensions (WxHxL) |
94 x 161.51 x 97.71mm |
| Weight |
350g |
| Electronic |
|
| Input Voltage |
5V DC / AC adapter 100V ~ 240V;50~60Hz |
| Power Consumption |
1.7W |
| Operating Current |
340mA |
| Standby current |
270mA |
| Environmental |
|
| Ambient light |
Max 4,800 Lux |
| Operating temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Storage temperature |
-20°C ~ 60°C (-4°F ~ 140°F) |
| Symbologies |
Automatically discriminates major standard 1D bar codes, include GS1 databar - Omnidirectional, Expanded and Limited codes | |
| |
|
|
